Regridding Benchmark: Sphedron vs xESMF#
This notebook compares sparse interpolation methods from sphedron against xESMF for transferring a scalar field between two uniform lat-lon grids on the sphere.
We benchmark:
xESMF: bilinear, nearest, conservative regridding
Sphedron: nearest, IDW, Gaussian, local RBF (degree 0 and 1)
All sphedron methods produce a sparse weight matrix W such that y = W @ x, which can be reused as a fixed linear layer in deep-learning pipelines.
[1]:
import time
import numpy as np
import matplotlib.pyplot as plt
import xarray as xr
import xesmf as xe
from sphedron import UniformMesh
from sphedron.transfer import MeshTransfer
from sphedron.transform import xyz_to_thetaphi
Setup#
We create a 1° sender grid and a 0.5° receiver grid, both uniform lat-lon. The test field is a spherical harmonic: \(f(\theta, \varphi) = \cos(3\theta)\sin(2\varphi)\).
[2]:
sender = UniformMesh(resolution=1.0)
receiver = UniformMesh(resolution=0.5)
tp_s = xyz_to_thetaphi(sender.nodes)
tp_r = xyz_to_thetaphi(receiver.nodes)
x_send = np.cos(3 * tp_s[:, 0]) * np.sin(2 * tp_s[:, 1])
y_true = np.cos(3 * tp_r[:, 0]) * np.sin(2 * tp_r[:, 1])
norm_true = np.linalg.norm(y_true)
print(f"Sender: {sender.num_nodes:,} nodes (1°)")
print(f"Receiver: {receiver.num_nodes:,} nodes (0.5°)")
Sender: 64,800 nodes (1°)
Receiver: 259,200 nodes (0.5°)

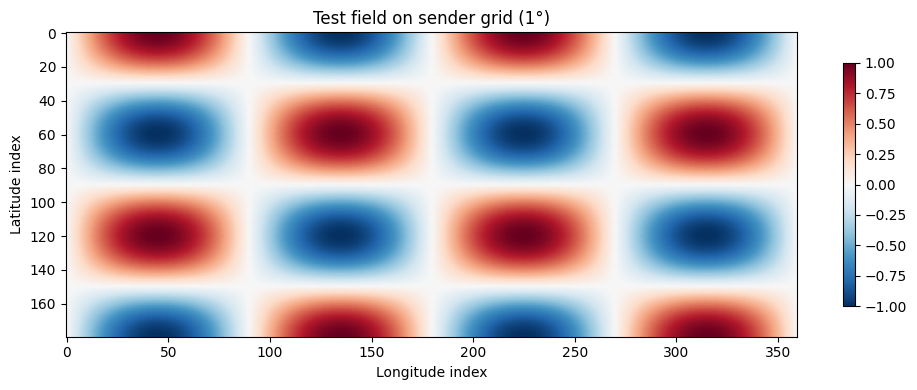

Let’s visualize the test field on the sender grid:
[3]:
fig, ax = plt.subplots(1, 1, figsize=(10, 4))
field_2d = sender.reshape(x_send)
im = ax.imshow(field_2d[::-1], aspect="auto", cmap="RdBu_r", vmin=-1, vmax=1)
ax.set_title("Test field on sender grid (1°)")
ax.set_xlabel("Longitude index")
ax.set_ylabel("Latitude index")
plt.colorbar(im, ax=ax, shrink=0.8)
plt.tight_layout()
plt.show()
xESMF regridding#
We build xesmf-compatible xarray datasets from the mesh coordinates and benchmark bilinear, nearest, and conservative regridding.
[4]:
# Extract lat/lon coordinates from the mesh node layout
n_lat_s, n_lon_s = 180, 360
n_lat_r, n_lon_r = 360, 720
lat_s = 90 - np.degrees(tp_s[:n_lat_s, 0])
lon_s = np.degrees(tp_s[::n_lat_s, 1]) % 360
lat_r = 90 - np.degrees(tp_r[:n_lat_r, 0])
lon_r = np.degrees(tp_r[::n_lat_r, 1]) % 360
ds_in = xr.Dataset({"lat": (["lat"], lat_s), "lon": (["lon"], lon_s)})
ds_out = xr.Dataset({"lat": (["lat"], lat_r), "lon": (["lon"], lon_r)})
# Reshape flat node values to (lat, lon) for xesmf
data_2d = x_send.reshape(n_lon_s, n_lat_s).T
da_in = xr.DataArray(data_2d, dims=["lat", "lon"],
coords={"lat": lat_s, "lon": lon_s})
[5]:
import warnings
warnings.filterwarnings("ignore")
xesmf_results = {}
for method in ["bilinear", "nearest_s2d", "conservative"]:
t0 = time.perf_counter()
regridder = xe.Regridder(ds_in, ds_out, method, periodic=True)
t_build = time.perf_counter() - t0
t0 = time.perf_counter()
result = regridder(da_in)
t_apply = time.perf_counter() - t0
y = result.values.T.ravel() # back to node ordering
delta = y - y_true
rmse = np.sqrt(np.mean(delta ** 2))
rel = np.linalg.norm(delta) / norm_true
xesmf_results[method] = {
"y": y, "rmse": rmse, "rel": rel,
"build": t_build, "apply": t_apply,
}
print(f"xesmf {method:15s} RMSE={rmse:.6e} rel={rel:.4%} "
f"build={t_build:.3f}s apply={t_apply:.4f}s")
xesmf bilinear RMSE=2.635974e-02 rel=5.2719% build=3.468s apply=0.3509s
xesmf nearest_s2d RMSE=7.865942e-03 rel=1.5732% build=0.687s apply=0.0119s
xesmf conservative RMSE=7.858339e-03 rel=1.5717% build=4.005s apply=0.0197s
Sphedron sparse transfer#
MeshTransfer.build_weights() produces a sparse CSR matrix where each row has a fixed number of non-zeros (the degree). The transfer is then a single sparse matrix-vector product.
[6]:
transfer = MeshTransfer(sender, receiver, n_neighbors=16)
sphedron_configs = [
("nearest", dict(method="nearest")),
("idw(k=5)", dict(method="idw", k=5)),
("gaussian(k=5)", dict(method="gaussian", k=5)),
("local_rbf(k=8,d=0)", dict(method="local_rbf", k=8, degree=0)),
("local_rbf(k=8,d=1)", dict(method="local_rbf", k=8, degree=1)),
("local_rbf(k=16,d=0)", dict(method="local_rbf", k=16, degree=0)),
("local_rbf(k=16,d=1)", dict(method="local_rbf", k=16, degree=1)),
]
sphedron_results = {}
for name, kwargs in sphedron_configs:
t0 = time.perf_counter()
W = transfer.build_weights(**kwargs)
t_build = time.perf_counter() - t0
t0 = time.perf_counter()
y = W @ x_send
t_apply = time.perf_counter() - t0
delta = y - y_true
rmse = np.sqrt(np.mean(delta ** 2))
rel = np.linalg.norm(delta) / norm_true
nnz = W.nnz / W.shape[0]
sphedron_results[name] = {
"y": y, "rmse": rmse, "rel": rel,
"build": t_build, "apply": t_apply, "nnz": nnz,
}
print(f"sphedron {name:20s} RMSE={rmse:.6e} rel={rel:.4%} "
f"build={t_build:.3f}s apply={t_apply:.4f}s nnz/row={nnz:.0f}")
sphedron nearest RMSE=7.865942e-03 rel=1.5732% build=0.094s apply=0.0003s nnz/row=1
sphedron idw(k=5) RMSE=3.391504e-03 rel=0.6783% build=0.030s apply=0.0011s nnz/row=5
sphedron gaussian(k=5) RMSE=3.503608e-03 rel=0.7007% build=0.041s apply=0.0011s nnz/row=5
sphedron local_rbf(k=8,d=0) RMSE=2.438814e-03 rel=0.4878% build=0.788s apply=0.0013s nnz/row=8
sphedron local_rbf(k=8,d=1) RMSE=2.441545e-03 rel=0.4883% build=1.415s apply=0.0012s nnz/row=8
sphedron local_rbf(k=16,d=0) RMSE=7.509459e-03 rel=1.5019% build=2.452s apply=0.0023s nnz/row=16
sphedron local_rbf(k=16,d=1) RMSE=7.620532e-03 rel=1.5241% build=3.384s apply=0.0023s nnz/row=16
Comparison table#
[7]:
print(f"{'Method':<30s} {'RMSE':>12s} {'Rel. Error':>12s} {'Build':>8s} {'Apply':>8s}")
print("-" * 72)
for method, r in xesmf_results.items():
print(f"xesmf {method:<24s} {r['rmse']:>12.6e} {r['rel']:>11.4%} "
f"{r['build']:>7.3f}s {r['apply']:>7.4f}s")
print()
for name, r in sphedron_results.items():
print(f"sphedron {name:<21s} {r['rmse']:>12.6e} {r['rel']:>11.4%} "
f"{r['build']:>7.3f}s {r['apply']:>7.4f}s")
Method RMSE Rel. Error Build Apply
------------------------------------------------------------------------
xesmf bilinear 2.635974e-02 5.2719% 3.468s 0.3509s
xesmf nearest_s2d 7.865942e-03 1.5732% 0.687s 0.0119s
xesmf conservative 7.858339e-03 1.5717% 4.005s 0.0197s
sphedron nearest 7.865942e-03 1.5732% 0.094s 0.0003s
sphedron idw(k=5) 3.391504e-03 0.6783% 0.030s 0.0011s
sphedron gaussian(k=5) 3.503608e-03 0.7007% 0.041s 0.0011s
sphedron local_rbf(k=8,d=0) 2.438814e-03 0.4878% 0.788s 0.0013s
sphedron local_rbf(k=8,d=1) 2.441545e-03 0.4883% 1.415s 0.0012s
sphedron local_rbf(k=16,d=0) 7.509459e-03 1.5019% 2.452s 0.0023s
sphedron local_rbf(k=16,d=1) 7.620532e-03 1.5241% 3.384s 0.0023s
Error visualization#

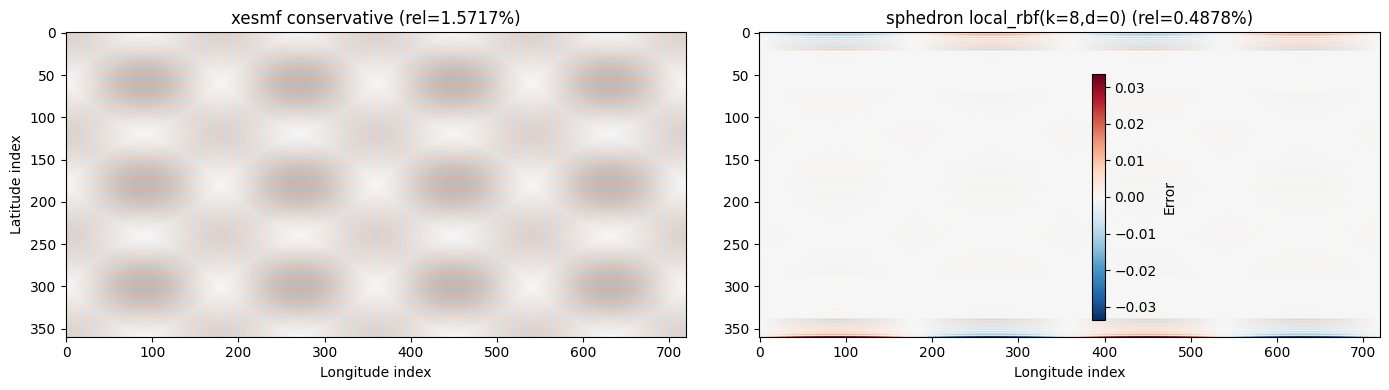

Let’s compare the interpolation error spatially for the best method from each library.
[8]:
best_xesmf = xesmf_results["conservative"]["y"]
best_sphedron = sphedron_results["local_rbf(k=8,d=0)"]["y"]
err_xesmf = receiver.reshape(best_xesmf - y_true)
err_sphedron = receiver.reshape(best_sphedron - y_true)
vmax = max(np.abs(err_xesmf).max(), np.abs(err_sphedron).max())
fig, axes = plt.subplots(1, 2, figsize=(14, 4))
im0 = axes[0].imshow(err_xesmf[::-1], aspect="auto", cmap="RdBu_r",
vmin=-vmax, vmax=vmax)
axes[0].set_title(f"xesmf conservative (rel={xesmf_results['conservative']['rel']:.4%})")
axes[0].set_xlabel("Longitude index")
axes[0].set_ylabel("Latitude index")
im1 = axes[1].imshow(err_sphedron[::-1], aspect="auto", cmap="RdBu_r",
vmin=-vmax, vmax=vmax)
axes[1].set_title(f"sphedron local_rbf(k=8,d=0) (rel={sphedron_results['local_rbf(k=8,d=0)']['rel']:.4%})")
axes[1].set_xlabel("Longitude index")
plt.colorbar(im1, ax=axes, shrink=0.8, label="Error")
plt.tight_layout()
plt.show()

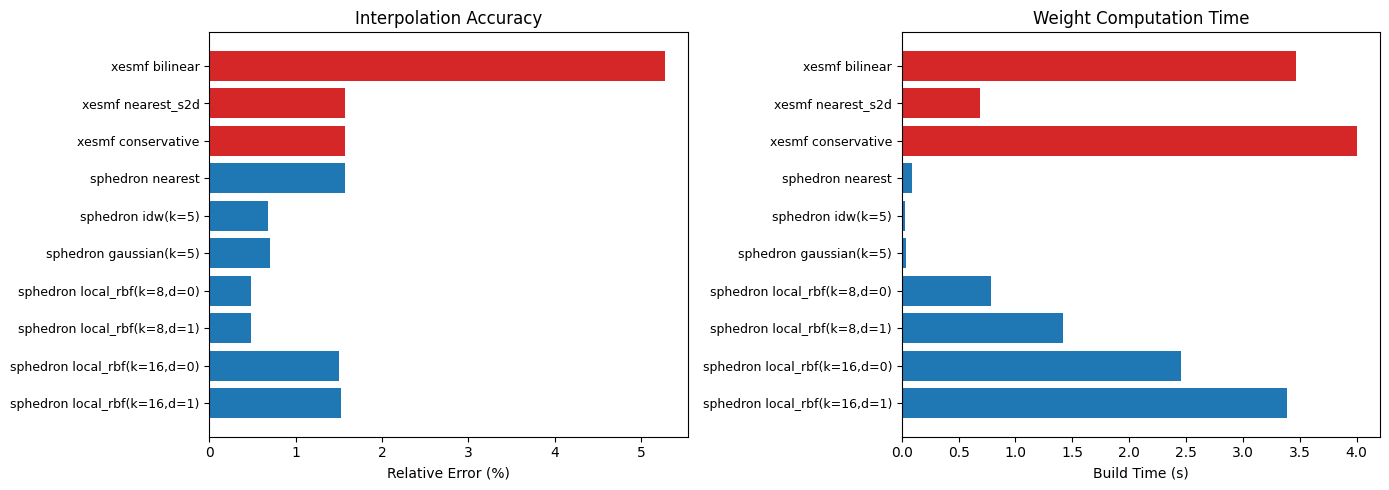

Bar chart comparison#
[9]:
all_names = [f"xesmf {m}" for m in xesmf_results] + \
[f"sphedron {n}" for n in sphedron_results]
all_rel = [r["rel"] * 100 for r in xesmf_results.values()] + \
[r["rel"] * 100 for r in sphedron_results.values()]
all_build = [r["build"] for r in xesmf_results.values()] + \
[r["build"] for r in sphedron_results.values()]
colors = ["#d62728"] * len(xesmf_results) + ["#1f77b4"] * len(sphedron_results)
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))
ax1.barh(range(len(all_names)), all_rel, color=colors)
ax1.set_yticks(range(len(all_names)))
ax1.set_yticklabels(all_names, fontsize=9)
ax1.set_xlabel("Relative Error (%)")
ax1.set_title("Interpolation Accuracy")
ax1.invert_yaxis()
ax2.barh(range(len(all_names)), all_build, color=colors)
ax2.set_yticks(range(len(all_names)))
ax2.set_yticklabels(all_names, fontsize=9)
ax2.set_xlabel("Build Time (s)")
ax2.set_title("Weight Computation Time")
ax2.invert_yaxis()
plt.tight_layout()
plt.show()
Icosphere sender (factor=64)#
The previous benchmark used a uniform lat-lon sender grid, which xESMF is designed for. Now let’s use an Icosphere as the sender – a triangular mesh with quasi-uniform node spacing. xESMF requires structured grids, so it cannot handle this case. Sphedron works on arbitrary point clouds.
[10]:
from sphedron import Icosphere
ico = Icosphere.from_base(refine_factor=64)
print(f"Icosphere factor=64: {ico.num_nodes:,} nodes")
print(f"Receiver (same): {receiver.num_nodes:,} nodes (0.5°)")
tp_ico = xyz_to_thetaphi(ico.nodes)
x_ico = np.cos(3 * tp_ico[:, 0]) * np.sin(2 * tp_ico[:, 1])
ico_transfer = MeshTransfer(ico, receiver, n_neighbors=16)
Icosphere factor=64: 40,962 nodes
Receiver (same): 259,200 nodes (0.5°)
[11]:
# True field on receiver
y_true_ico = np.cos(3 * tp_r[:, 0]) * np.sin(2 * tp_r[:, 1])
ico_results = {}
for name, kw in sphedron_configs:
t0 = time.perf_counter()
W = ico_transfer.build_weights(**kw)
build = time.perf_counter() - t0
t0 = time.perf_counter()
y = W @ x_ico
apply = time.perf_counter() - t0
delta = y - y_true_ico
rmse = np.sqrt(np.mean(delta**2))
rel = np.linalg.norm(delta) / np.linalg.norm(y_true_ico)
ico_results[name] = dict(y=y, rmse=rmse, rel=rel, build=build, apply=apply,
nnz=W.nnz // W.shape[0])
print(f"{name:<30s} RMSE {rmse:.4e} Rel {rel:.4%} "
f"Build {build:.3f}s Apply {apply*1e3:.2f}ms")
nearest RMSE 7.4391e-02 Rel 14.8781% Build 0.048s Apply 0.43ms
idw(k=5) RMSE 7.1263e-02 Rel 14.2526% Build 0.032s Apply 1.12ms
gaussian(k=5) RMSE 6.3140e-02 Rel 12.6281% Build 0.043s Apply 1.12ms
local_rbf(k=8,d=0) RMSE 5.2474e-02 Rel 10.4949% Build 0.785s Apply 1.29ms
local_rbf(k=8,d=1) RMSE 5.2149e-02 Rel 10.4298% Build 1.427s Apply 1.27ms
local_rbf(k=16,d=0) RMSE 5.3774e-02 Rel 10.7547% Build 2.507s Apply 2.40ms
local_rbf(k=16,d=1) RMSE 5.3743e-02 Rel 10.7486% Build 3.352s Apply 2.38ms
[12]:
print(f"{'Method':<30s} {'Uniform 1°':>14s} {'Icosphere f64':>14s}")
print("-" * 60)
for name in sphedron_results:
u_rel = sphedron_results[name]["rel"]
i_rel = ico_results.get(name, {}).get("rel", float("nan"))
print(f"{name:<30s} {u_rel:>13.4%} {i_rel:>13.4%}")
Method Uniform 1° Icosphere f64
------------------------------------------------------------
nearest 1.5732% 14.8781%
idw(k=5) 0.6783% 14.2526%
gaussian(k=5) 0.7007% 12.6281%
local_rbf(k=8,d=0) 0.4878% 10.4949%
local_rbf(k=8,d=1) 0.4883% 10.4298%
local_rbf(k=16,d=0) 1.5019% 10.7547%
local_rbf(k=16,d=1) 1.5241% 10.7486%
[13]:
fig, ax = plt.subplots(figsize=(10, 5))
names = list(sphedron_results.keys())
x_pos = np.arange(len(names))
width = 0.35
uniform_rels = [sphedron_results[n]["rel"] * 100 for n in names]
ico_rels = [ico_results[n]["rel"] * 100 for n in names]
ax.bar(x_pos - width/2, uniform_rels, width, label="Uniform 1°")
ax.bar(x_pos + width/2, ico_rels, width, label="Icosphere f=64")
ax.set_ylabel("Relative error (%)")

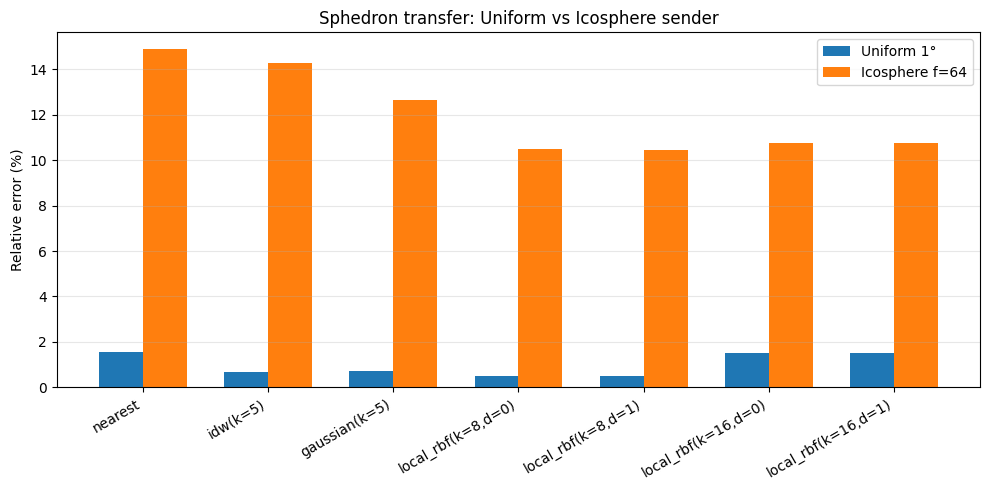

ax.set_title("Sphedron transfer: Uniform vs Icosphere sender")
ax.set_xticks(x_pos)
ax.set_xticklabels(names, rotation=30, ha="right")
ax.legend()
ax.grid(axis="y", alpha=0.3)
plt.tight_layout()
plt.show()
Using the sparse weights in PyTorch#
Since W is a fixed sparse matrix, the transfer y = Wx is differentiable and can be used directly as a layer in a neural network.
[14]:
import torch
W = transfer.build_weights(method="local_rbf", k=8, degree=0)
# Convert scipy sparse -> PyTorch sparse
W_coo = W.tocoo()
indices = torch.LongTensor(np.vstack([W_coo.row, W_coo.col]))
values = torch.FloatTensor(W_coo.data)
W_torch = torch.sparse_coo_tensor(indices, values, W_coo.shape)
# Forward + backward pass
x = torch.FloatTensor(x_send)
x.requires_grad_(True)
y = torch.sparse.mm(W_torch, x.unsqueeze(1)).squeeze(1)
loss = y.sum()
loss.backward()
print(f"Input: {x.shape}")
print(f"Output: {y.shape}")
print(f"Gradient: {x.grad.shape} (nonzero: {(x.grad != 0).sum()}/{x.grad.shape[0]})")
print("\nGradients flow correctly through the sparse transfer.")
Input: torch.Size([64800])
Output: torch.Size([259200])
Gradient: torch.Size([64800]) (nonzero: 64800/64800)
Gradients flow correctly through the sparse transfer.
